Datum FRAME ONLY

Overview

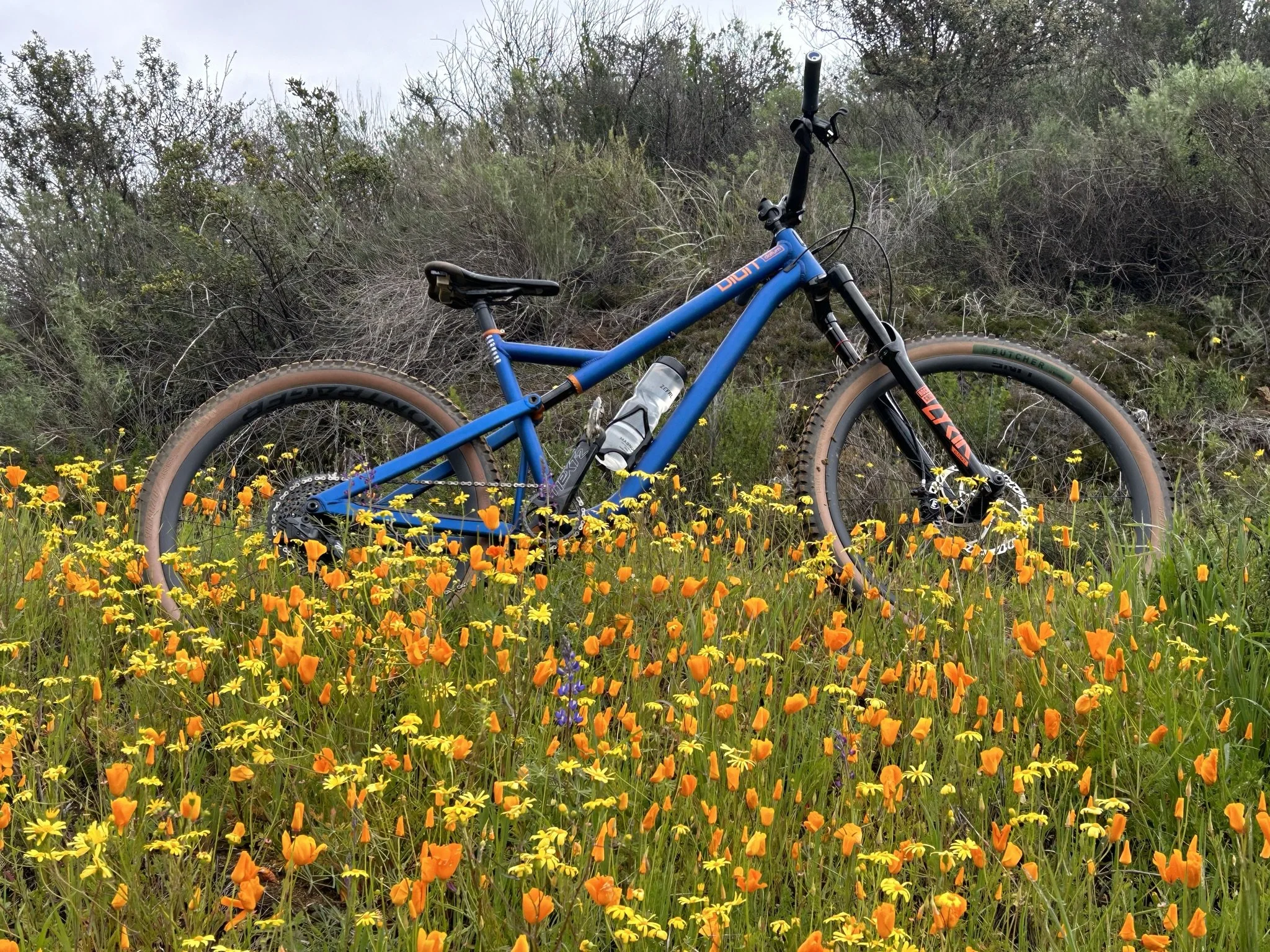

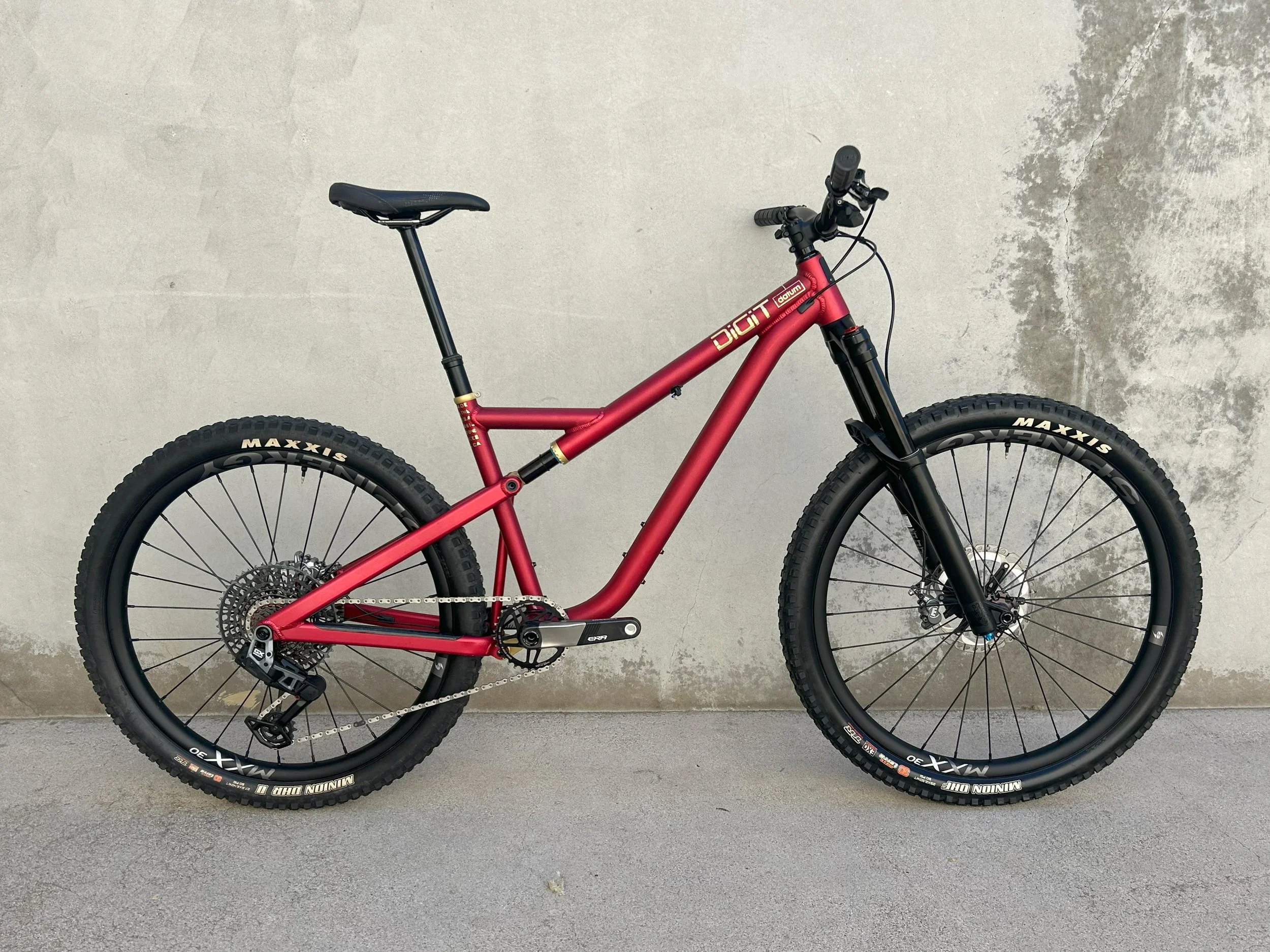

Designed and manufactured in California, USA; DATUM is a 140mm rear travel All-Mountain / Trail bike frame, for use with a 160mm fork.

Its all-new ANALOG suspension matches both the better descending and pedaling attributes of the industry's most respected four-bar suspension systems, while delivering significantly reduced weight, carrying more water bottles, and offering improved reliability.

It does this by replacing the many parts which on other frames comprise the upper link and shock subassembly with a unified strut, named INTEGER. Hidden inside the frame, it guides the upper suspension pivot smoothly and with incredible lateral stiffness, flows more oil, squeezes more air, and has fewer parts in an easily serviceable, low motion-ratio package.

The culmination of years of development and ride testing on trails, bike parks and all-mountain terrain, Datum is our reference, our middle point between XC and DH. It's a mountain bike for riding in, across, up and down mountains - we're not going to call it a quiver-killer, but it's a bike which will deliver miles of smiles whether you're showing up for your local Wednesday Night XC World Championships or Sunday's Shred Session Enduro Series.

Click the images below to open each review

Datum frame features

• Custom butted aluminum frame. Made in Southern California.

• REAR: 140mm rear travel, fits 27.5" rear wheel, tires up to 27.5x2.6, 180mm post-type brake mount. 148Boost axle included with frame.

• FRONT: match with 29" front wheel 160mm travel fork (150mm fork on size S). Fork not included.

• SHOCK/STRUT: Digit INTEGER Strut (External adjustments: air pressure, LSR and LSC damping. Internal adjustments: positive air volume, negative air volume, shim adjustment of LSC, HSC, LSR, HSR), included with frame.

• SEATTUBE: fits 31.6mm diameter with internal dropper post routing.

• SEATPOST COLLAR: 34.9mm inside diameter, included with frame.

• HEADSET: IS41/52.

• BOTTLE MOUNTS: 3: front of seat tube, top of down tube, under-side of down tube.

• DERAILLEUR HANGER: Sram UDH, included with frame.

• BOTTOM BRACKET: Enduro Bearings PF4130, included with frame.

• CRANK COMPATIBILTY: 30mm x  136.5mm spindle included with frame for Race Face Cinch Next SL/Next R/Turbine, FSA 30mm, 5Dev, Garbaruk cranks. Cranks not included.

• CRANK COMPATIBILTY: 24mm spindle adapter tube included frame for 24mm cranks (e.g. Shimano/GXP). Cranks not included.

• FRAME WEIGHT: 6.4lbs (size L, typical).

Geometry

Cerakote Colors

Custom colors are available from the selection shown.

Please leave a note at checkout of which color you want.

The custom process typically takes 2-3 weeks.
